Lenzora integrated solar street lights are available in five configurations: Standard-180W, Standard-240W, PRO-150W, PRO-200W, and PRO-250W. This guide compares their lamp size, solar panel, battery, LED configuration, brightness, and recommended applications.
What Is an Integrated Solar Street Light?
An integrated solar street light combines the solar panel, rechargeable battery, LED light source, and controller in one fixture. It charges during daylight and operates automatically after dark, reducing the need for underground electrical wiring and ongoing grid electricity.
Built-in solar panels collect energy without a grid connection.
The rechargeable battery is housed within the fixture.
Selected models support light control, timer, and microwave sensing.
Suitable for locations where trenching and cabling are difficult.
Available Models and Specifications
Standard-180W
- Lamp size
- 753 × 200 × 90 mm
- Approx. size
- 29.6 × 7.9 × 3.5 in
- Solar panel
- 5V 20W
- Battery
- 3.2V 30Ah
- Controller
- PWM + Timer + Sensor
Standard-240W
- Lamp size
- 1055 × 200 × 90 mm
- Approx. size
- 41.5 × 7.9 × 3.5 in
- Solar panel
- 5V 30W
- Battery
- 3.2V 36Ah
- Controller
- PWM + Timer + Sensor
PRO-150W
- Lamp size
- 1070 × 438 × 196 mm
- Approx. size
- 42.1 × 17.2 × 7.7 in
- Solar panel
- 6V 80W
- Battery
- 3.2V 80Ah
- LED type
- 7070 SMD
- LED quantity
- 66 pcs
- CCT
- 3000K–6500K
PRO-200W
- Lamp size
- 1310 × 438 × 196 mm
- Approx. size
- 51.6 × 17.2 × 7.7 in
- Solar panel
- 18V 100W
- Battery capacity
- 384Wh
- LED type
- 7070 SMD
- LED quantity
- 88 pcs
- Luminous output
- 12,600 lm
PRO-250W
- Lamp size
- 1550 × 438 × 196 mm
- Approx. size
- 61.0 × 17.2 × 7.7 in
- Solar panel
- 18V 120W
- Battery
- 12.8V 48Ah / 614Wh
- LED type
- 7070 SMD
- LED quantity
- 110 pcs
- Luminous output
- 16,800 lm
| Model | Series | Lamp Size | Solar Panel | Battery | LED / Output |
|---|---|---|---|---|---|
| 180W | Standard | 753 × 200 × 90 mm | 5V 20W | 3.2V 30Ah | Not specified |
| 240W | Standard | 1055 × 200 × 90 mm | 5V 30W | 3.2V 36Ah | Not specified |

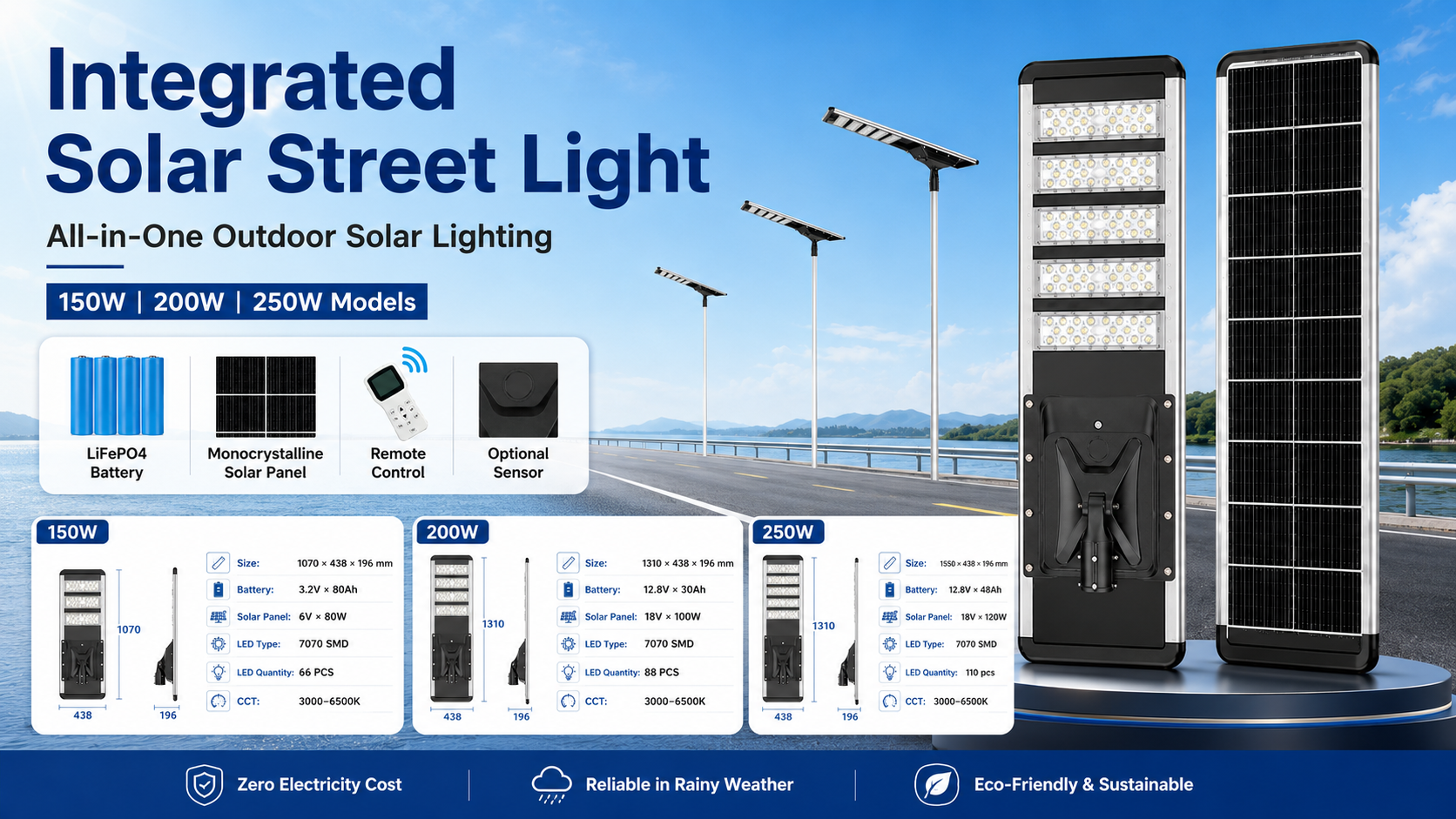

| 150W | PRO | 1070 × 438 × 196 mm | 6V 80W | 3.2V 80Ah | 66 × 7070 SMD |
| 200W | PRO | 1310 × 438 × 196 mm | 18V 100W | 384Wh | 88 × 7070 SMD / 12,600 lm |
| 250W | PRO | 1550 × 438 × 196 mm | 18V 120W | 12.8V 48Ah / 614Wh | 110 × 7070 SMD / 16,800 lm |
Standard Series vs. PRO Series
The Standard models use a slimmer housing and are practical for smaller outdoor areas. The PRO models use substantially larger solar panels and energy-storage systems, making them better suited to demanding commercial lighting projects.
- Standard-180W and Standard-240W: compact roads, driveways, gates, farms, paths, and smaller parking areas.
- PRO-150W: community roads, campuses, hotels, commercial entrances, and medium-sized parking areas.
- PRO-200W: larger roads, industrial yards, warehouse areas, and commercial parking lots.
- PRO-250W: wide roads, logistics centers, industrial parks, municipal projects, and large open areas.
How to Choose the Right Model
Measure road width, parking area, mounting height, and the distance between poles.
A larger panel can collect more energy when installed under suitable sunlight conditions.
Energy storage affects nighttime operation and performance during less favorable weather.
For commercial projects, compare verified lumens and LED configuration rather than relying only on model wattage.
Recommended Applications
Roads and Access Routes
Private roads, community roads, rural roads, farm roads, and commercial access routes.
Parking Areas
Hotels, warehouses, factories, campuses, residential communities, and commercial properties.
Industrial and Logistics Sites
Loading areas, storage yards, perimeter roads, logistics centers, and industrial parks.
Farms and Remote Properties
Entrances, internal roads, storage areas, agricultural facilities, and off-grid locations.
Key Benefits of the Lenzora Integrated Design
- Five configurations for different project sizes
- All-in-one solar panel, battery, LED, and controller
- Automatic daytime charging and nighttime operation
- Reduced need for trenching and external wiring
- Suitable for residential, agricultural, and commercial use
- Smart control options on selected configurations
Installation Considerations
Install the fixture where the solar panel receives direct sunlight and is not regularly shaded by trees, roofs, walls, or nearby buildings. Actual operating time can vary with sunlight intensity, local weather, season, installation angle, pole height, and selected lighting mode.
Choose a Solar Street Light for Your Project
Review all five configurations on the product page, or contact Lenzora with the road width, pole height, installation location, quantity, and expected lighting coverage for model-selection assistance.
