This all-in-one outdoor lighting system combines 200 SMD3535 LED chips, an 18V 100W solar panel, intelligent motion and light sensing, PWM charging, IP66 protection, and a durable die-cast aluminum housing.
Commercial-Grade 200W Solar Lighting

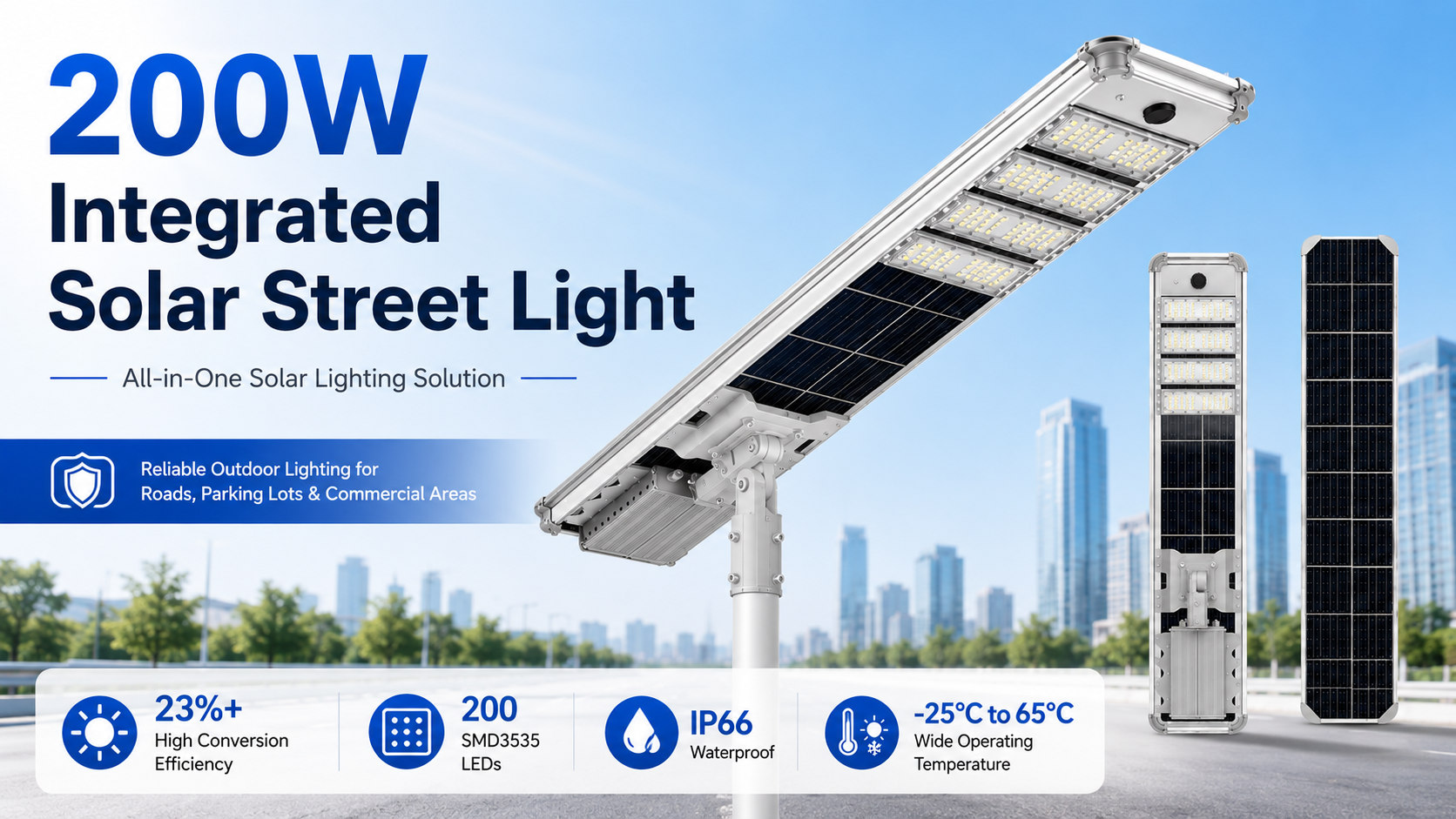

The Lenzora 200W Commercial Solar Street Light is designed for outdoor projects that need dependable illumination without relying entirely on conventional grid electricity. Its integrated design brings together the solar panel, LED lighting modules, controller, sensors, weather-resistant housing, and adjustable mounting structure in one streamlined fixture.
The light uses 200 SMD3535 LED chips arranged for bright and evenly distributed outdoor illumination. It is suitable for roads, parking areas, bridge access routes, commercial properties, residential communities, warehouses, farms, pathways, and other large open spaces.
High-Efficiency Solar Panel
The integrated solar panel is rated at 18V 100W and has a stated conversion efficiency of more than 23%. During daylight hours, it collects solar energy for the lighting system, making the fixture useful for locations where trenching, underground wiring, or a permanent utility connection would be difficult or costly.
The panel measures 1655 × 340 mm, approximately 65.2 × 13.4 inches. For better charging performance, it should be installed where it receives direct sunlight without regular shading from buildings, trees, walls, or nearby structures.
Collects energy during daylight for automatic nighttime operation.
Designed to support commercial outdoor lighting requirements.
Reduces dependence on extensive external electrical infrastructure.
The mounting structure can be positioned for the target lighting area.
Intelligent PWM Charging and Sensor Control
The controller supports PWM solar charging, motion-sensing operation, and automatic light-sensing control. The light sensor allows the fixture to respond to surrounding light conditions, while the motion sensor can adjust operation when movement is detected, depending on the selected configuration.
- PWM solar charging management
- Automatic light-sensing operation
- Motion-sensing control
- Optional controller configuration available
Durable Outdoor Construction
IP66 Weather Protection
The housing is designed to help protect the internal components from rain, dust, moisture, and changing outdoor conditions.
Die-Cast Aluminum Housing
The metal body provides structural support, outdoor durability, and heat dissipation for the LED modules and internal components.
Adjustable Mounting Structure
The bracket allows the lighting angle to be positioned according to pole location, road width, and target coverage.
Wide Temperature Range
The stated operating range is -25°C to 65°C, approximately -13°F to 149°F.
Complete Product Specifications
| Specification | Product Information |
|---|---|
| Product type | All-in-one solar street light |
| Rated power | 200W |
| LED quantity | 200 LEDs |
| LED type | SMD3535 |
| Solar panel | 18V 100W |
| Solar conversion efficiency | More than 23% |
| Light dimensions | 1672 × 357 × 50 mm / approximately 65.8 × 14.1 × 2.0 inches |
| Solar panel dimensions | 1655 × 340 mm / approximately 65.2 × 13.4 inches |
| Charging controller | PWM charging |
| Sensor functions | Motion sensor and automatic light sensor |
| Waterproof rating | IP66 |
| Housing material | Die-cast aluminum |
| Operating temperature | -25°C to 65°C / approximately -13°F to 149°F |
| Controller option | Optional controller configuration available |
Need Help Confirming the Right Configuration?
Send Lenzora the road or area dimensions, preferred pole height, required quantity, installation location, and intended application. This helps the team review placement, controller requirements, and project suitability.
Recommended Applications
Roads and Access Routes
Public roads, private roads, rural roads, community streets, bridge access routes, and new development areas.
Commercial Parking Lots
Business properties, warehouses, factories, hotels, campuses, and residential community parking areas.
Factories and Warehouses
Loading areas, outdoor work zones, storage yards, entrances, and perimeter roads.
Farms and Rural Properties
Farm roads, property entrances, agricultural facilities, storage areas, and remote open spaces.
Parks and Pathways
Public pathways, schools, campuses, construction sites, parks, and large outdoor areas.
Hotels and Resorts
Internal roads, entrances, parking areas, landscaped grounds, and guest-access routes.
Important Installation Considerations
- Sunlight exposure: Install the solar panel away from long-term shade.
- Road or area width: Wider spaces may require additional fixtures or adjusted spacing.
- Mounting height: Height affects ground brightness and total coverage.
- Pole spacing: Plan according to the target lighting uniformity and site layout.
- Local weather: Clouds, snow, dust, and seasonal daylight affect charging performance.
- Operating mode: Confirm the required sensor and controller behavior before ordering.
Why Choose This 200W Commercial Solar Street Light?
- 200 SMD3535 LED chips
- 18V 100W integrated solar panel
- More than 23% stated conversion efficiency
- PWM charging and intelligent sensing
- IP66 outdoor protection
- Durable die-cast aluminum housing
- Adjustable mounting structure
- Suitable for commercial and infrastructure projects
A Practical Solar Lighting Solution for Large Outdoor Areas
The Lenzora 200W Commercial Solar Street Light combines high-output LED modules, a large integrated solar panel, intelligent controls, weather-resistant construction, and an adjustable mounting structure in one outdoor fixture. It is intended for projects that require dependable solar-powered illumination for roads, parking lots, bridges, warehouses, farms, communities, and other large open areas.
For a more accurate project recommendation, provide the installation location, road or area dimensions, preferred pole height, expected quantity, local sunlight conditions, and intended operating mode.
Plan Your Solar Street Lighting Project with Lenzora
Use the button below to open the Lenzora Contact Us page. Send your project details and the team can review the product configuration, controller options, quantity, and installation requirements.
