UFO LED High Bay Light: 100W–240W Technical Specifications
A complete parameter guide to the 88 Series private-mold UFO LED high bay light, including six wattages, two housing sizes, LED and optical data, construction, protection, mounting accessories, color-temperature customization, plug options and shipping information.
Complete Model Specification Table
Swipe horizontally on smaller screens to view every column.
| Power | Listed Efficacy | Calculated Lumens* | Dimensions | LED Type / Qty. | CCT | Beam | IP | Material |
|---|---|---|---|---|---|---|---|---|
| 100W | 180–200 lm/W | 18,000–20,000 lm | Ø242 × 105 mm | 3030/2835, 448 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
| 120W | 180–200 lm/W | 21,600–24,000 lm | Ø242 × 105 mm | 3030/2835, 448 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
| 150W | 180–200 lm/W | 27,000–30,000 lm | Ø242 × 105 mm | 3030/2835, 448 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
| 180W | 180–200 lm/W | 32,400–36,000 lm | Ø320 × 110 mm | 3030/2835, 768 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
| 200W | 180–200 lm/W | 36,000–40,000 lm | Ø320 × 110 mm | 3030/2835, 768 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
| 240W | 180–200 lm/W | 43,200–48,000 lm | Ø320 × 110 mm | 3030/2835, 768 pcs | 3000K–6500K | 90° | IP65 | Aluminum + PC |
*Calculated lumen output is a planning value, not a laboratory measurement. Actual output varies with driver setting, CCT, optical loss, temperature and production tolerance.
Shared Product Parameters
Construction and Performance Features
These features reflect the details presented in the supplied product images.
High-Density 3030/2835 LEDs
The dense LED array is presented as providing high brightness, high luminous efficacy, energy-saving performance, long service life and wide-area illumination with a 90° beam.
Regulated Driver
The product material describes a quality driver with constant-current and constant-voltage regulation for stable operation and extended service life.
Triple-Proof Sealed Body
A built-in sealing gasket supports water, dust and insect resistance. The fixture carries a listed IP65 rating.
Thickened Cooling Fins
Radial, thickened fins increase heat-dissipation area and move heat away from the LED and driver compartments.
One-Piece Aluminum Housing
The integrated die-cast aluminum body is designed for fast heat conduction, structural support and industrial durability.
PC Optical Assembly
The PC front cover protects the high-density LED board while supporting the stated 90° light distribution.
Flexible Mounting and Accessory Options
The fixture can be configured for different building structures. Confirm which accessories are included in the quotation.
Hook / Eye-Bolt
Standard hanging point for direct suspension.
Suspension Chain
An optional hanging chain can be added.
Pendant Rod
An optional rigid pendant stem or rod can be added.
Adjustable Bracket
An optional bracket supports surface or directional mounting.
Reflector / Lampshade
An optional reflector shade can be fitted.
Custom Accessories
Mounting hardware and lead configuration can be customized.
Conventional Version
Standard round UFO housing configuration.
Project Matching
Select accessories for ceiling height and maintenance access.
Customizable Color Temperature
Choose one fixed CCT or request the shown three-color adjustable version.
Warm appearance for softer environments.
Balanced color for general industrial work.
Crisp appearance for task-oriented areas.
Three-color selection option shown in the supplied material.
Regional Plug Options
The standard lead is shown as a three-core cable. Plug style can be configured for the destination market.
Typical Applications
- Warehouses and logistics centers

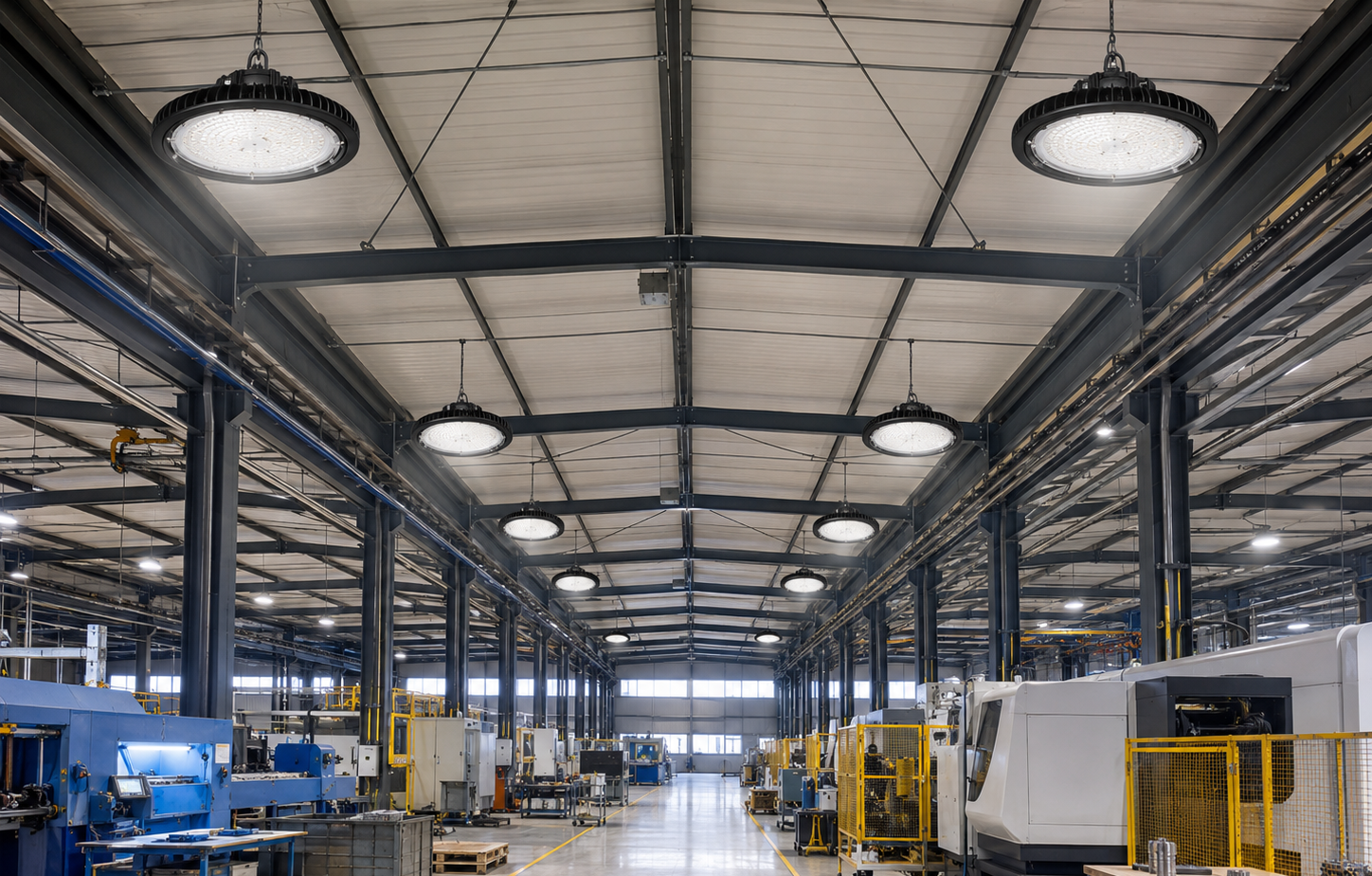

- Factories and production workshops
- Aircraft hangars and maintenance areas
- Sports halls and exhibition buildings
- Large retail or wholesale facilities
- Covered loading and circulation areas
Packing and Shipping Information
The detail sheet and shipping table use slightly different rounding, so both are retained.
| Power Group | Product-Sheet Carton | Rounded Shipping Size | Volume | Gross Weight | Listed Warranty |
|---|---|---|---|---|---|
| 100W / 120W / 150W | 26 × 26 × 12.5 cm | 26 × 26 × 13 cm | Approx. 0.009 m³ | 2.4 kg | 5 years* |
| 180W / 200W / 240W | 33.5 × 33.5 × 12.5 cm | 34 × 34 × 13 cm | Approx. 0.015 m³ | 3.5 kg | 5 years* |
*The supplied listing states a five-year quality warranty. Confirm the warranty document, exclusions and operating conditions in the sales contract.
How to Select a Model
Wattage alone does not determine a successful layout. Use photometric data and project dimensions before ordering.
Information to Include in an Inquiry
- Required power and quantity
- Input voltage and frequency
- Required CCT or adjustable-color option
- Mounting height and target lux
- Hook, chain, rod, bracket or lampshade requirement
- Destination and plug type
Technical Items to Confirm
- Driver brand, power factor and THD
- CRI and CCT tolerance
- Surge protection and dimming protocol
- Operating-temperature range
- IES/LM-79 reports and certifications
- Warranty, accessories and packing method
