The JCS04 series combines Philips 3030 LED chips, high-efficiency monocrystalline solar panels, 12.8V LiFePO4 batteries, intelligent controls, IP66 weather protection, and IK08 impact resistance in five configurations from 30W to 150W.
Integrated Solar Street Lighting for Outdoor Projects

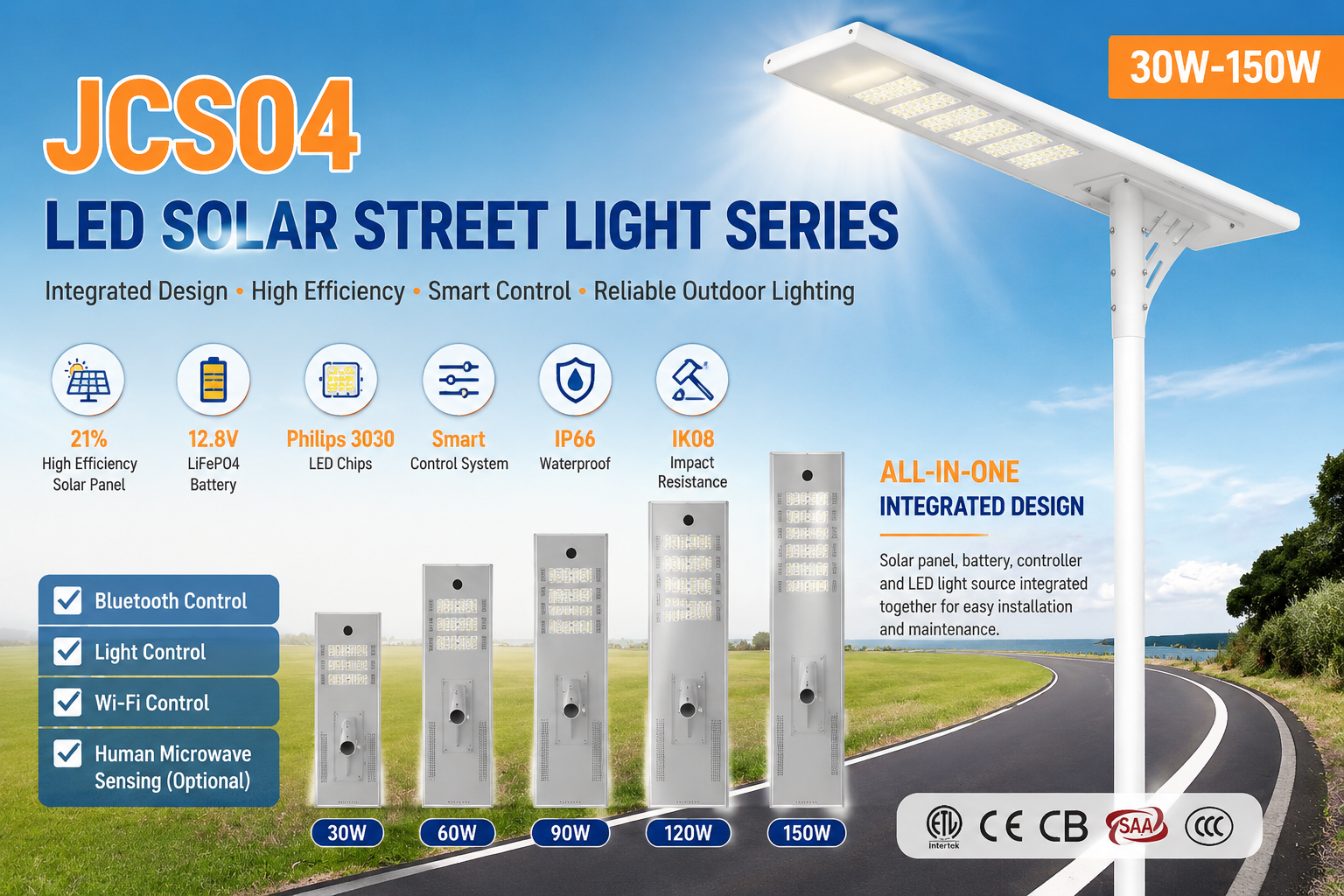

The JCS04 LED Solar Street Light Series is available in 30W, 60W, 90W, 120W, and 150W models. Each fixture integrates the solar panel, LiFePO4 battery, LED modules, and intelligent controller into one streamlined outdoor lighting system.
The five configurations provide luminous output from 4,800 to 24,000 lumens, allowing project buyers to compare fixture size, LED quantity, solar panel power, and battery energy capacity according to the scale of the installation.
Philips 3030 LED Chips and High Luminous Efficacy
According to the supplied product information, the JCS04 series uses Philips 3030 LED chips. All five models share an SMD3030 LED configuration, with the LED quantity increasing from 100 pieces in the 30W model to 300 pieces in the 150W model.
The listed fixture luminous efficacy is 180–210 lm/W, while the total listed luminous flux rises with each model:
Used throughout the five-model series.
LED quantity varies according to the selected model.
Listed fixture luminous efficacy.
Five light-output levels for different projects.
Complete JCS04 Model Comparison
| Specification | JCS04-30W | JCS04-60W | JCS04-90W | JCS04-120W | JCS04-150W |
|---|---|---|---|---|---|
| Rated power | 30W | 60W | 90W | 120W | 150W |
| Fixture dimensions | 1080 × 425 × 50 mm | 1210 × 425 × 50 mm | 1470 × 425 × 50 mm | 1360 × 530 × 50 mm | 1610 × 530 × 50 mm |
| LED quantity | 100 PCS | 150 PCS | 200 PCS | 250 PCS | 300 PCS |
| LED type | SMD3030 | SMD3030 | SMD3030 | SMD3030 | SMD3030 |
| Luminous flux | 4,800 lm | 9,600 lm | 14,400 lm | 19,200 lm | 24,000 lm |
| Monocrystalline solar panel | 6V 70W | 18V 92W | 18V 110W | 18V 130W | 18V 150W |
| LiFePO4 battery energy | 268Wh | 460Wh | 614Wh | 768Wh | 921Wh |
Five Models for Different Lighting Requirements
JCS04-30W
- Output
- 4,800 lm
- LEDs
- 100 PCS
- Solar panel
- 6V 70W
- Battery
- 268Wh
- Dimensions
- 1080 × 425 × 50 mm
JCS04-60W
- Output
- 9,600 lm
- LEDs
- 150 PCS
- Solar panel
- 18V 92W
- Battery
- 460Wh
- Dimensions
- 1210 × 425 × 50 mm
JCS04-90W
- Output
- 14,400 lm
- LEDs
- 200 PCS
- Solar panel
- 18V 110W
- Battery
- 614Wh
- Dimensions
- 1470 × 425 × 50 mm
JCS04-120W
- Output
- 19,200 lm
- LEDs
- 250 PCS
- Solar panel
- 18V 130W
- Battery
- 768Wh
- Dimensions
- 1360 × 530 × 50 mm
JCS04-150W
- Output
- 24,000 lm
- LEDs
- 300 PCS
- Solar panel
- 18V 150W
- Battery
- 921Wh
- Dimensions
- 1610 × 530 × 50 mm
Monocrystalline Solar Panels and LiFePO4 Batteries
The supplied feature sheet lists a monocrystalline silicon solar panel with a stated conversion efficiency of 21% and an expected service life of more than 20 years. Solar panel power increases from 6V 70W on the smallest model to 18V 150W on the largest model.
The JCS04 series also uses a 12.8V LiFePO4 battery system. The specification table lists battery energy capacities from 268Wh to 921Wh. Actual charging and nighttime performance will vary according to sunlight exposure, season, weather, installation conditions, controller settings, and operating mode.
Shared Technical Specifications
Color Temperature
All five models are listed with a 4000K–6000K color-temperature range.
Beam Distribution
The supplied options are T2S, T3M, and T4M for different road and project layouts.
Color Rendering
The listed color rendering index is Ra > 70.
Power Factor
The listed power factor is greater than 0.95.
Weather Protection
IP66 protection is listed for outdoor dust and water resistance.
Impact Resistance
IK08 impact resistance is listed for the complete JCS04 series.
Need Help Selecting a JCS04 Model?
Send Lenzora the intended application, road or area dimensions, required quantity, installation location, and preferred model. The team can review the available output, beam distribution, controller functions, and project requirements.
Intelligent Control Options
The supplied specification sheet lists Bluetooth control, automatic light control, Wi-Fi control, and human microwave sensing. The feature description also states that human-sensing functionality is optional.
- Bluetooth control
- Automatic light control
- Wi-Fi control
- Optional human microwave sensing
Recommended Applications
Roads and Access Routes
Public roads, private roads, rural roads, community streets, and new development areas.
Parking Areas
Commercial parking lots, factory parking areas, campuses, hotels, and residential communities.
Factories and Warehouses
Entrances, storage yards, loading areas, perimeter roads, and outdoor work zones.
Farms and Rural Properties
Farm roads, agricultural entrances, storage areas, and remote sections of a property.
Parks and Pathways
Public pathways, school grounds, campuses, parks, and outdoor community spaces.
Commercial Projects
Business properties, resorts, development sites, and other large outdoor areas.
How to Compare the Five Models
Model selection should be based on more than the wattage label. The project should also consider listed luminous flux, solar panel power, battery energy capacity, fixture size, beam distribution, required quantity, and the dimensions of the installation area.
- JCS04-30W: the smallest fixture and lowest listed output in the series.
- JCS04-60W: increased output, solar panel power, and battery capacity.
- JCS04-90W: a mid-range configuration with 14,400 lumens and 200 LEDs.
- JCS04-120W: a higher-output option with 19,200 lumens and a 768Wh battery.
- JCS04-150W: the largest listed configuration with 24,000 lumens and 921Wh.
Why Consider the JCS04 Solar Street Light Series?
- Five configurations from 30W to 150W
- Philips SMD3030 LED chips
- Listed output from 4,800 to 24,000 lumens
- Monocrystalline solar panels with 21% stated efficiency
- 12.8V LiFePO4 battery system
- Bluetooth, light, Wi-Fi, and optional microwave sensing controls
- IP66 weather protection and IK08 impact resistance
- T2S, T3M, and T4M beam options
A Flexible Commercial Solar Street Lighting Series
The JCS04 series provides five integrated solar street light configurations for outdoor projects requiring different fixture sizes, light outputs, solar panel capacities, and battery energy levels. Its shared technical platform includes Philips 3030 LEDs, intelligent controls, IP66 protection, IK08 impact resistance, and multiple beam-distribution options.
For wholesale or project orders, provide the installation location, road or area dimensions, required quantity, preferred model, and intended application so the appropriate configuration can be reviewed before ordering.
